Some technical data for the Pilot 93
  • principle:heterodyne receiver
  • IF = 115 kHz
  • tube line-up: 6A7, 6D6, 75, 43 and 25Z5
  • power 115 V AC/DC
  • wavebands: MW (545-1500 kHz) and SW (5.75-15.8 MHz).

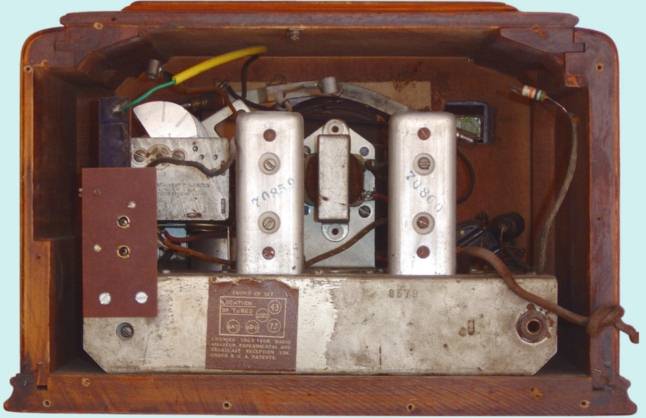

Unfortunately a previous owner has replaced 3 tubes (including the sockets). The tuning dial is badly damaged, the radio does not work and the backpanel seems to be a replacement.
